Dragon Agro Products

Aquafog Hydro SS700	Aquafog GT-500	Aquafog Turbo XE Fan	Aquafog Turbo XE-HRSM

Aquafog Hydro SS 700 Series

Hydro 700 Bench Top See Video in Action	Hydro 700 Hanging Sump See Video in Action	Hydro 700 Direct Feed See video in action

Bench Top Centrifugal Fogger (BT)
Aquafog SS700, brings advanced fine-mist fogging to the small / midsize applications. Perfectly suited for growing orchids or cooling people. If you need an abundance of misty-fog combined with mild air propulsion, Hydro 700 is the ticket. Quiet, lightweight and easy to install. Units simply attach to a garden hose and standard wall outlet. Unit fills automatically, have adjustable fogging output control and on/off control box. For extremely high humidity application- above 95% RH, the GT-500 is high recommended.

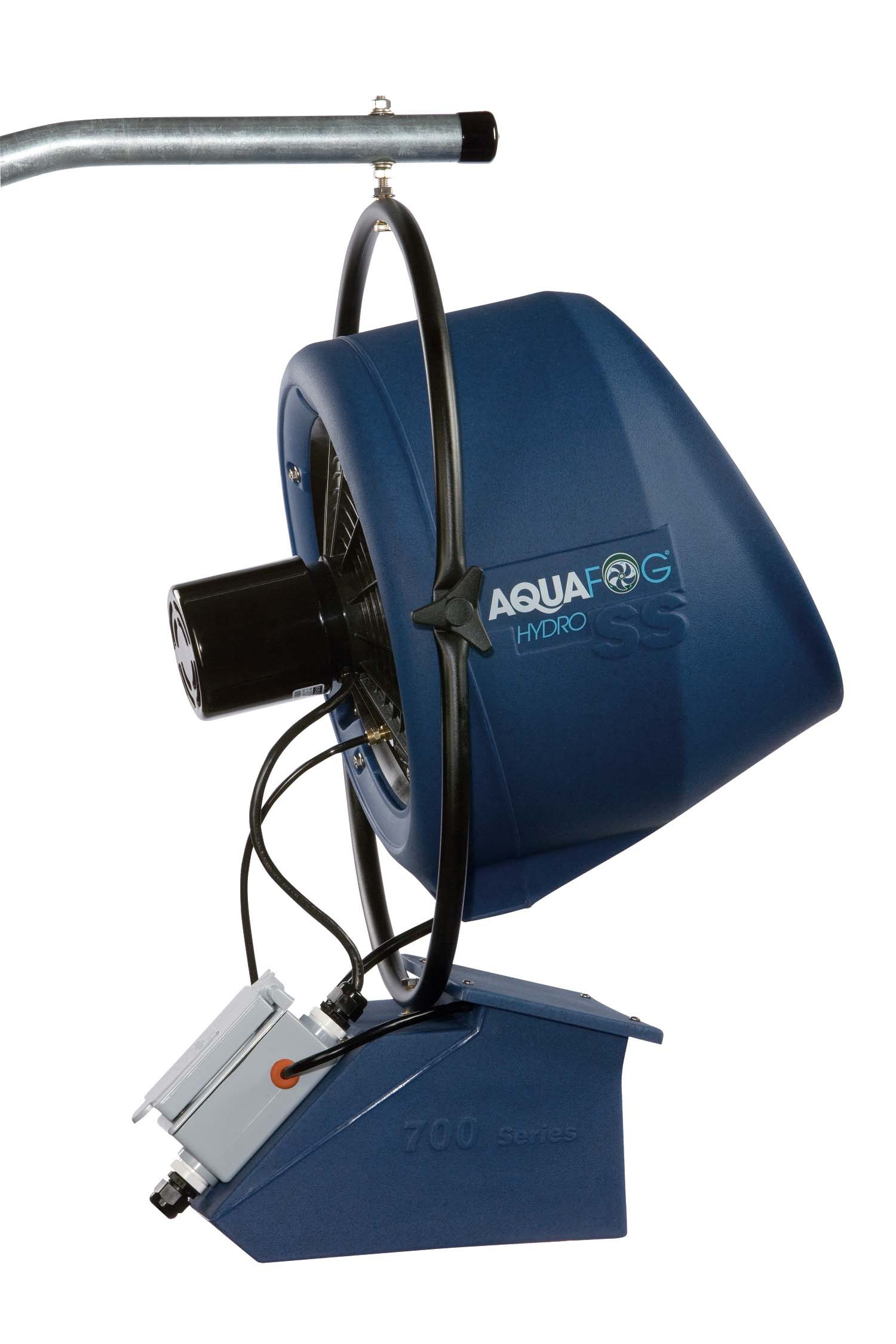

Hanging Sump Centrifual fogger (HS)
If you are interested in a Bench Top model but would like the option of hanging the unit, the Hanging Sump is a Bench Top unit with a hanging bracket added. The SS-700HS is a direct replacement to the discontinued Aquafog 400.

Direct Feed Centrifugal Fogger (DF)
Direct Feed Hydro SS700 is a hanging unit with no sump. Water is supplied directly through a visual flowmeter control panel. Ideal for applications where standing water in a sump could become an issue, this unit eliminates all of the sump components for enhanced dependability. Supplied with a 12' condensation drainage line. For automatic control, Direct Feed units require controls equipped with a water solenoid. These control packages are available and referenced with (-DF) after the model number.

Misting Capability: 0-5 gph for DF, 0-4gph for BT and HS
CFM: 980 @ 60 hz,
Energy Consumption: 1.5 A (DF) @ 115V/ 1.8A
Noise @ 10ft distance: 63 dB(A) @ 60Hz
Average Particle Size 40 microns
Fan Dimension: 16”W x 17”D x 20" for DF, 16"W x 18"D x 25"D for BT, 16"W x 18"D x 28"D for HS
Motor 1/20 hp: 115V 60Hz 1ph,
Cord Length: 14 Feet with plug

• Compact, Lightweight, Advanced design made of thermo-plastic that’s highly corrosion-resistant.
• Bench top and hanging units available
• Features no-clog, nozzle-free atomization head
• Adjustable misting capabilities up to 4 US gallon per hour, producing particles that average 40 microns in size.
• Sump models do not require a drainage area. The condensation waste water gets redirected to the sump for reuse..
• Equipped with flow control and convenient water hose connection.
• Delivered fully assembled, ready to operate.
• 1 year Manufacturers warranty from date of purchase

Aquafog 700 is manufactured by Jaybird Manufacturing Inc. Click on Aquafog 700 to view its performance

Model		Description	Electrical Rating	List Price	Your Price* April, 2022	Your Price* Before April 2022
SS-700-DF	See Video in action	Aquafog SS Direct Feed 0 to 5 gal/hr with 0 - 5gph flowmeter panel	115v 60 Hz 1 ph 1.5A	$877	$673	$629
DH-36-DF		Digital Humidistat Control - DF Environmental Controller w/ Humidity Sensor & Solenoid Package A precision controller suitable for many applications. Control is very fast acting, displays humidity levels and has programmable differential range. - Not recommended for prolonged use above 90% RH. Fast Acting Digital Sensor Range 5-99% RH Includes Water Solenoid for Direct Feed Rated up to 1200W (10A @ 115V) Over-Humidity and Sensor Fault Alarm	115V AC 60Hz		$172	$172
XE-36 DF		Jaybird Humidistat - DF Dependable, Easy to Use This pre-wired humidistat is ideal for control in applications under 80% RH. Controller incorporates a mechanical-action sensor with simple dial control. Range 20-80% RH Includes Water Solenoid for Direct Feed Rated up to 1400W (12A @ 115V) Piggy-back plug, device connect	115V 60Hz	$191	$131	$122*
CTA-120-DF		Cycle Timer Control - DF Want to maintain high humidity above 80%, then this pre-wired time-cycle control is what you may need. Select time cycles ranging from 30 seconds to 4 hours. Includes piggy-back plug. Water-tight Nema 4X Includes Water Solenoid	115V 60Hz	$324	$300	$280*
THA-120-DF		If your primary interest is indoor evaporative cooling, this pre-wired control is what you need to automate your SS 700-DF. Includes piggy-back plug. Water-tight Nema 4X Includes Water Solenoid Control range 40-110º F Differential 2º F	115V 60Hz	$199	$172	$172*
TC-120-DF		24 Hour Timer Control - DF For automating on/off cycles This reliable mechanical timer with water solenoid turns power and water on and off at selected intervals. Ideal for dawn-to-dusk type applications. Rain-tight enclosure, 15A receptacle, 115V. Two sets of on/off trippers provided Minimum 30 minute intervals	115V AC 60Hz		$158	$137
SV-120-DF		Water Solenoid - DF Control water flow, electrically Use with preexisting control systems. Connect directly to the same power supply to automate water flow (on/off) in conjunction with the fan. Safeguard against power outage. If operating fogging units manually (no control system), a water solenoid installed in the unit’s water supply line will shut off water flow in the event of a power outage. 6′ power cord with plug, 115V NEMA 4 Water-tight components ¼″ OD tubing connections	115V AC 60Hz		$85	$75
SS-700-BT	See Video in Action	Aquafog SS-700 Bench Top SS-700-BT	115v 60 Hz 1 ph 1.5A	$1010	$775	$724
SS-700-HS	See Video in Action	Aquafog SS-700 Hanging Sump . Hanging bracket not included as shown. This is a direct replacement to the Aquafog 400	115v 60 Hz 1 ph 1.8A	$1048	$805	$752
DH-36		Digital Humidistat Control A precision controller suitable for many applications. Control is very fast acting, displays humidity levels and has programmable differential range. - Not recommended for prolonged use above 90% RH. • Fast-acting Digital Sensor • Range 5-99% RH • Rated up to 1200W (10A @ 115V) • Over-Humidity and Sensor Fault Alarm	115V to 250V 50/60Hz		$78	$69
XE-36		Jaybird Humidistat Dependable, Easy to Use This pre-wired humidistat is ideal for control in applications under 80% RH. Controller incorporates a mechanical-action sensor with simple dial control. • Range 20-80% RH • Differential approximately 7% • Rated up to 1400W (12A @ 115V) • Piggy-back plug, device connect	115V to 250V 50/60Hz	$132	$74	$67*
THA-120		Thermostat Control If your primary interest is indoor evaporative cooling, then this pre-wired control is what you need to automate your unit. Water-tight Nema 4X Control range 40-110º F Differential 2º F Includes 115V piggy-back plug	115V to 250V 50/60Hz	$137	$123	$112*
CTA-120		Cycle Timer Control Want to maintain high humidity above 80% then this pre-wired time-cycle control is what you may need. Select time cycles ranging from 30 seconds to 4 hours. Water-tight Nema 4X Includes 115V piggy-back plug	115V to 250V 50/60Hz	$249	$234	$217*
TA-120		24-hour Timer This reliable mechanical timer turns power on and off at selected intervals. Ideal for dawn-to-dusk type applications. Rain-tight enclosure, 115V - 15A receptacle. Two sets of on/off trippers provided Minimum 30 minute intervals	115V AC 60Hz		$44	$41

* Plus Shipping.. Please note that all shipping travels at your own risk. Inquire for discount schedule on volume purchase.
* When paying by Money Order or Check (subject to 5 to 10 business days clearance) or wire transfer (Add $25). Please add Ground Shipping & handling to cost of products. Credit Card Add 3% to total. Inquire for discount schedule on volume purchases. Since we're a high volume distributor, we're passing the savings to you.

Aquafog 700 is manufactured by Jaybird Manufacturing Inc . .

RETURN POLICY :
Call before shipping. Returns shall only be effected with the proper Return Authorization. Products returned without the RA# will not be accepted. No returns after 30 days. Refund will be less 20% restocking fee, and less credit card surcharge. Return freight will also be at your expense.

Frequently Asked Questions

1. Does the Hydrofogger 400/700 produce a mist or a fog?

The Aquafogr 400 is considered to be between a misting machine and a fogging machine to be on the conservative side. Particles over 50 micons have a tendency to settle out of the air as mist. Aquafogs use centrifugal force to atomize liquid into ultra-fine particles averaging 30 to 35 microns in size.

2. How much water capacity do I need?

Aquafog units do not require any high pressure pumps. An ordinary water supply is more than adequate and pressure can be as low as 5 psi.

3. Will the Aquafog units be reliable using my water supply?

Aquafog units are a self-flushing and nozzle-free system that does not require small orifices to produce a high quality fog. In most cases no filtration is necessary. In fact, Aquafog units can accept ordinary water supplies, such as city, well and even pond water without incurring any clogs. Even well water supplies with high concentrations of calcium rarely present clogging problems.

4. Can I install this unit myself?

You certainly can, the Aquafog 400/700 arrives fully assembled, they are very easy and quick to install. To complete a system: an Aquafog 400 unit is already complete and ready for manual operation. the combination Aquafog400 unit and a humidistat can be set for automatic on/off operation according to a desired preset humidity level.

5. What do I need for a complete system?

A garden hose, a place to hang the Aquafog 400 and humidistat and a source of power within 12 feet are recommended to complete a humidifier installation.

6. How long would it take to have my order shipped?

Generally, orders are shipped quickly within 24 hours. Large or customized orders may require a few additional days. Aquafog can be shipped by UPS.. Overseas orders are normally shipped by air.

7. What about warranty ?

The equipment is covered under manufacturer's warranty - 1 year from date of purchase..

8. My room is covered with white film/powder after using the unit. What is the problem ?

As they say, garbage in, garbage out. If the quality of your water is not good ( high concentration of salts, hardwater, iron etc... The effect is going to show up by the appearance of white / red powder / film on any of the surface that the fog would adhere depending on the type of mineral in the water. Best way is to have the water analyzed with the local water treatment company so they could recommend the proper water treatment. Best water to use in a fogging machine is pure water where there is no residue left once the fog dissipates.

9. What is the noise level?

Aquafog 400 is a quite units. The noise level is like a refrigerator when the compressor is running..The Aquafog turbofan on the other hand is a much larger unit suitable for a larger greenhouse and has a much higher noise level.

Do you have any questions that weren't answered here?

Send us some email! We'll be happy to answer any questions you have.

Please inquire for shipping cost.
As a reminder, a 7% sales tax will be charged to the Humidifiers when it is shipped in New Jersey.
