SMART SELF WATERING PLANTERS
Download Catalogue

The Planter that Thinks Like a Plant

There is a category of planters known as self watering planters that you may have tried. The problem is, these pots actually bombard plants with a deluge of water--whether they need it or not. Tournesol Siteworks Container Irrigation planters are entirely different. Their Controlled Watering System is in a category by itself. it actually senses when a plant is thirsty, and when it has had enough to drink.

 .

A porous sensor, connected to the vacuum-controlled water reservoir by means of a tube, is inserted to the level of the rootball when the plant is potted. As the mix around the root ball becomes dry, the sensor also becomes dry and responds by releasing air in the vacuum chamber. Water seeps slowly into the mix through the Controlled Water Inlet and is drawn into the rootball by natural capillary action. When it reaches the sensor, the water flow is stopped--preventing over-saturation.

Just refill the reservoir every four weeks - and your plants will put down roots and stay awhile.

Bulbs to Bromeliads-- Pansies to Perennials even Orchids- phalaenopsis, phragmepidium,.
There's almost no limit to the types of plants you can choose. Create an herb garden in the kitchen, cultivate tropical plants in the study, grow ivy on the deck, keep annuals on the porch, and force fragrant blooming bulbs all year long-- without worrying about going on vacation or forgetting water.

That's why whether you tend hundreds of plants or just a few, The Smart Self-watering planters are such a logical choice. It also explains why they're found at more than 30,000 commercial sites around the world-- from fine department stores to Walt Disney World.



CWS Planter Liners

CWS Planter

With CWS Planter Liners construction of planter walls is simpler than ever – no irrigation or plumbing required. They may be used in both exterior and interior applications, and are ideal when conventional irrigation isn’t possible or practical. They may be dropped into window boxes, or painted and used on their own. For longer runs and within planter walls they are typically installed modularly, end to end. For interior applications CWS Planters Liners require no drainage.

CWS planter

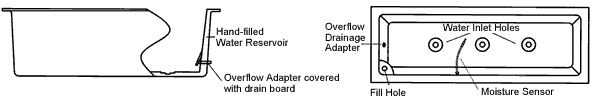

How CWS Planter Liners Work

CWS Planter Liner vacuum-sensor reservoir surrounds the planting area, and is filled by hand every 1-2 weeks for exterior applications and every 3-4 weeks for interior applications. The fill hole is plugged with a stopper, creating an airtight reservoir.
When the soil is dry (indicating the plants need water), the moisture sensor allows air to pass through the clear tube into the reservoir, allowing water to flow into the container from the water inlet locations along the bottom of the liner. One moisture is all that is required for CWS Planter Liners up to 72"L. The water wicks up through the soil, irrigating the plants.
As the soil becomes moist, the sensor (typically planted 1/3-way down the liner) absorbs water. When wet, it acts like a valve, blocking the flow of air through the tube. A vacuum is created above the reservoir, preventing further watering until the soil dries again.

Overflow drainage adapter – a free-draining overflow adapter for CWS Planter Liners in exterior applications. The adapter allows rainwater to drain, but will prevent irrigation water from overflowing under normal conditions. When nstalled, the overflow drainage adapter allows excess water that builds up (typically rainwater) to escape without disrupting the system.CWS w/ drainage

To Specify

CWS Planter Liners with Built-in Irrigation. Double wall construction with built-in reservoir and vacuum-sensor moisture control. Use model numbers in chart corresponding to correct length, width and depth. CWS Planter Liners are made standard in black, pre-consumer recycled High Impact Polystyrene. A UV protective coating is recommended for surfaces that are exposed to direct sunlight. Painting of the flanges only or the whole unit is available. All flange dimensions listed are nominal, and may be trimmed –1"/+2" from the nominal size.

Model Specifications

"XX" indicates nominal length of liner. i.e. 72" PB4-XX2517 = PB4-722517 All dimensions subject to ± 1/4" tolerance.
Model Width (A) Planting Area (B) Depth (C) Nominal Lengths Available
PB1-XX 8"-10" 6" 8" 24", 30", 36", 42", 48", 54", 60", 66", 72"
PB2-XX 11"-14" 8" 9" 24", 30", 36", 42", 48", 54", 60", 66", 72"
PB3-XX 15"-18" 12" 9.25" 24", 30", 36", 42", 48", 54", 60", 66", 72"
PB4-XX1412 13"-16" 10.25" 12" 24", 30", 36", 42", 48", 54", 60", 66", 69", 72"
PB4-XX1716 16"-19" 13" 16" 24", 30", 36", 42", 48", 54", 60", 66", 69", 72"
PB4-XX2110 20"-23" 17.5" 10.5" 24", 30", 36", 42", 48", 54", 60", 66", 69", 72"
PB4-XX2410 23"-26" 20" 10.5" 24", 30", 36", 42", 48", 54", 60", 66", 72"
PB4-XX2116 21"-24" 16.25" 16" 24", 30", 36", 42", 48", 54", 60", 66", 72"
PB4-XX2517 24"-26" 20" 17" 36", 48", 60", 72"
PB4-XX3010 29"-32" 25" 10.5" 36", 42", 48", 54", 60", 66", 72"
PB4-XX3016 30"-32" 26.25" 16" 24", 30", 36", 42", 48", 54", 60", 66", 72"
PBSU set-up charge of $160 will be assessed for each thermoformed line item ordered in quantities fewer than 5 units.
More Information
Detail Sheet
Guide Specifications
Field Manuals
Technical Information


Sea Crest Series

Lightweight Planters with Built-in Irrigation, SeaCrest Series lightweight planters with built-in CWS irrigation permit tremendous flexibility with larger site-furnishing sized containers. The CWS irrigation system means minimal maintenance (just refill the water reservoir every 2-4 weeks), and requires no complicated plumbing. An exterior drainage adapter (see reverse side) eliminates stained pavement and removes the need for saucers. Polyethylene double-wall construction is lightweight enough to be moved, but so durable that it will withstand automobile impact.

Applications
The perfect solution for roofdecks, balconies, and difficult-to-irrigate locations. Durable enough for sidewalk or parking lot use. Elegant enough to be used in lobbies and atriums.

Materials/Construction
Seamless, one-piece units formed from cross-link or linear low-density polyethylene. Available in seven rich matrix (faux stone) finishes, and a variety of solid colors. All SeaCrest Series planters have a lightly textured pebbled finish. Will not crack, chip or break in temperatures from -40° to 140°F. SeaCrest Series planters are graffiti resistant, and incorporate the maximum UV inhibitor package. Planters withstand cold weather and freeze/thaw cycles.


SeaCrest™ Lightweight Planter Features
CWS Sub-irrigation senses the moisture level in the container, replenishes the water as needed. Balances moisture and oxygen levels in the soil.
Colored Material (not a coating) - scratches won't show as a different color.
Graffiti resistant finish - just clean up with soap and water or paint thinner.
Incredibly durable despite low weight - easy to install (no forklift or crane required).
Rich matrix finishes such as Buff, Canyon, Mesa, Pumice, Sierra, Quarry and Summit, incorporate the maximum UV protection, reducing fading and discoloration.

Matrix Finish
Bluff
Canyon
Mesa
Quarry Sierra Summit Pumice
Please note that because of the color scanning process, the colors shown may vary slightly from actual colors.


Click Installation Manual.

Model Outside Dim Inside Dim Water Capacity. Soil Capacity Dry Weight Full Weight
SS-2417 24"dia x 17"h 21"/15" x 13"h 11 gal 2.5 cu. ft 20 lbs 240 lbs
SS-2422 24"dia x 22"h 21"/18" x 18"h 15 gal 4 cu. ft 24 lbs. 350lbs
SS-3022 32"dia. x 22"h 27"/23" x 19"h 21 gal 5.4 cu. ft 35 lbs 460 lbs.
SS-3817 38"dia. x 17"h 33"/29" x 14"h 19 gal 5.5 cu. ft 35 lbs 440 lbs.
SS-3822 38"dia. x 22"h 33"/29" x 17"h 23 gal 6.75 cu. ft 55 lbs 550 lbs.
SS-3830 38"dia. x 30"h 33"/29" x 25"h 26 gal 9 cu. ft. 65 lbs 687 lbs.
SS-4830 48"dia. x 30"h 43"/39" x 25"h 40 gal. 18 cu. ft 100 lbs 1300 lbs
SS-5517 55"dia. x 17"h 50"/38" x 14"h 35 gal 8.75 cu. ft 100 lbs 780 lbs
SS-5536 55"dia. x 36"h 50"/38" x 32"h 76 gal. 23.75 cu. ft 180 lbs 1880 lbs.
SR-242422 24" sq. x 22"h 20"x20"x18.5" 22 gal 3.8 cu. ft. 30 lbs 400 lbs
SR-383824 38" sq. x 24"h 34"x34"x21" 28 gal. 10 cu. ft. 75 lbs. 800 lbs.
SR-482422 48"l x 24"w x 22"h 42"x18"19.5" 35 gal 7 cu. ft 43 lbs 640 lbs.
SR-722422 72"l x 24"w x 22"h 66"x18"19.5" 51 gal. 11 cu. ft. 65 lbs 970 lbs.
SR-723222 72"l x 32"w x 22"h 66"x27"19.5" 69 gal 18 cu. ft 90 lbs 1500 lbs
* When paying by Money Order or Check (subject to clearance), . Please add Ground Shipping & handling to cost of products. Credit Card/Paypal Add 3% to total. Inquire for discount schedule on volume purchases. Since we're a high volume distributor, we're passing the savings to you. Please allow a minimum of 2 weeks lead time to process your order as these planters are made to order. Returns will not be honored unless the product is deemed defective by the manufacturer.



CWI





Phragmepidium growing in CWI
Lady Slipper Orchid (Phragmipedium) growing in damp to wet condition in a CWI , watering once a month

Clivia lgrowing in CWI
Clivia growing in a damp then dry condition in a smart self-watering CWI -watering once a month. The common (dumb) self-watering planter would easily drown and kill a Clivia.


A Lady Slipper (Paphiopedilum) growing in a moist condition in a smart CWI self-watering liner. Potting mix consists of 5%pon at the bottom (lava rock, zeolite, pumice) and the rest consisting of sponge rock (large chunk perlite) with sprinkle of pumice on top as a watering indicator. Watering is about every 8 to 10 weeks depending on weather.



CWI container irrigation solution is designed to be dropped into most cylindrical and slightly tapered decorative containers, for both interior and exterior pots and planters. The CWI uses the proven vacuum-sensor technology to precisely monitor the soil moisture level, irrigating the plant only when the soil starts to dry. It allows for extended hand-watering intervals, typically 2 to 4 weeks for interior plants and 1 to 3 weeks for exterior plants, depending on the plant and the surrounding conditions. The addition of an optional overflow drainage adapter allows for use of CWI in exterior applications, and prevents the drainage of irrigation water during normal use.

Model Exterior Size Inside Dia Inside Ht. Water Capacity Case Pack List Price Your Price per case* Your Price per planter **
CWI-750 8.75" dia x 6 "H 7" dia 5.5" 2.0 pint 12 $360 $290 $30
CWI-800 9.1" dia x 7.5"H 7.5" 6.5" 0.6 Gallon 12 $360 $290 $30
CWI-1000 11.25" dia x 10" H 9.5" 8.75" 1.0 Gallon 8

$272

$217 $34
CWI-1200 12.5" dia x 11.25" H 11" 9" 1.5 Gallons 6 $300 $250 $50
CWI-1400 15.75" dia x /14" H 14" 12.75" 2.0 Gallons 3 $225 $180 $75
CWI-1650 18" dia x 16.75" H 16" 15.25" 4 Gallons 3 $420 $336 $140
CWI-1700 18.25" dia x 18.5" H 17" 17" 4.5 Gallons 3 $456 $365 $152
CWI-2200 23.7"dia x 19.75" H 21.25" 18" 8 Gallons 1 $243 $243 $243

FOR INTERIOR APPLICATION
More Information
. Detail Sheet , Guide Specifications , Field Manuals , Technical Information

FOR EXTERIOR APPLICATION
More Information , Detail Sheet , Guide Specifications , Field Manuals , Technical Information


*
When paying by Money Order or Check (subject to clearance), .
Please add Ground Shipping & handling to cost of products. Credit Card/Paypal Add 3% to total. Inquire for discount schedule on volume purchases. Since we're a high volume distributor, we're passing the savings to you. Please allow a minimum of 2 weeks lead time to process your order as these planters are made to order. Returns will not be honored unless the product is deemed defective by the manufacturer.
** Can be ordered individually when fitted with the optional exterior drainage adapter.
Minimum purchase for CWI self watering planter is $100. NJ residents Please add required sales tax



CWC CLASSIC






CWC CLASSIC INSERT is a container irrigation solution designed to be dropped into most standard vase-shaped and tapered decorative containers, for exterior and interior pots and planters. The CWC Classic uses proven vacuum-sensor technology to precisely monitor the soil moisture level, irrigating the plant only when the soil starts to dry. It allows for extended hand-watering intervals, typically 2-3 weeks for exterior plants, depending on the plant and the surrounding conditions. The CWC Classic integrates an overflow drainage adapter, which allows rainwater to overflow but prevents the drain-off of irrigation water during normal use.



Model
Outside Dia.
Top/Bottom
Inside Dia
Overall Ht.
Inside Ht.
Water Capacity
Container Size
Case Quantity
List Price per Case
Your Price / case
Your Price each
CWC-R1100 Tapered Square 12" /10.5"   13.25" 12" 2 Gallons For Small Square pots
4
$468
$396
$117
CWC-R1300 Tapered Square 15.25"/9"   9"   2.5 Gallons
4
$560
$499
$140
CWC-R1500 Tapered Square 17"sq./
10"
  17"   3 gallons for 19" square pots
3
$585
$498
$195
CWC-R1600 Tapered Square 18.25"/12.1"   18.5"   4 gallons
2
$390
$331
$195
CWC-R1616 Tapered Square 16"./
12.7"
  11.7"   2 gallons for 19" to 17" square pots
4
$608
$516
$152
CWC-R1850 Tapered Square 20.5" / 15.5"   19"   5 gallons for 22" square pots
2
$622
$528
$311
CWC-1200 12.9"/8"   11"   1 gallon
4
$392
$333
$98
CWC-1216 12"/7.5"   16"   1.7.gallons
4
$392
$333
$98
CWC-1300 14.5"/8.0" 13"/6.75" 13.5" 12" 1.2 Gallons 18" O. Dia
4
$432
$367
$108
CWC-1500 16.5"/10.5" 15"/8.5" 15" 13.5" 2.25 Gallons 20", 22" O. Dia.
4
$532
$452
$133
CWC-1600
18"/11.5"
17"
3.2 Gallons
3
$483
$410
$161
CWC-1800 20.8"/13" 18"/11" 19" 17" 4.0 Gallons 24" and 26" O. Dia.
3
$627
$539
$209
CWC-2100 23.3"/14.5" 20.5"/12" 21.5" 19" 6 Gallons 26", 28" O. Dia.
2
$542
$460
$271
CWC-2400 26"/15" 24"/13" 21" 18.75" 6.5 Gallons 28", 30" O. Dia.
2
$706
$600
$353
CWC-2500 27.25"/17.5" 24.5"/15" 24" 21.5" 7.5 Gallons 30", 33" O. Dia.
1
$359
$359
$359
CWC-2800 31"/19" 28.5"/17" 26" 24" 8 Gallons 33",36" O. Dia.
1
$498
$498
$498
CWC-3300 35"/23" 32.5"/16" 27" 24" 12 Gallons 40", 44" O. Dia.
1
$558
$558
$558
More Information
Detail Sheet
CAD & Models
Guide Specifications
Field Manuals
Technical Information


*
When paying by Money Order or Check (subject to clearance), .
Please add Ground Shipping & handling to cost of products. Credit Card/Paypal Add 3% to total. Inquire for discount schedule on volume purchases. Since we're a high volume distributor, we're passing the savings to you. Please allow a minimum of 2 weeks lead time to process your order as these planters are made to order. Returns will not be honored unless the product is deemed defective by the manufacturer.
Minimum purchase for CWI Classic self watering planter is $100. NJ residents Please add required sales tax


CWF Water Bowl





Finally, an irrigation solution for the most maintenance intensive of containers! Planter Technology’s self-contained CWF irrigation system is designed to be dropped into most flower bowls, shallow pots, urns and vases between 18" and 36" in diameter. The hand-filled vacuum-sensor reservoir surrounds the planting area, and holds enough water to last up to 2 weeks before refilling. A tremendous labor savings for always-thirsty color bowls.

Planter Technology’s overflow drainage adapter prevents rainwater from flooding the container, and keeps irrigation water contained during normal use. No more overflowing saucers, stained surfaces, or slip-and-fall liability. The CWF may be fully planted and prepared off-site, and quickly switched out on location. The property owner/manager will appreciate eliminating mess and inconvenience. Lightweight yet extremely durable, it will hold up to the roughest of handling and years of service.

Model Outside Dia.
Outside
Height
Inside
Diamter
Inside Ht. Water Capacity Empty Weight
List Price
Your Price*
CWF-1706 17" 6" 15.25" 5.5" 1.1 Gallons 2.5 lbs
$96
$87
CWF-2107 21" 7" 19.25" 6.5" 2.2Gallons 4 lbs
$142
$125
CWF-2508 25" 8." 23.25" 7.25" 2.8Gallons 5 lbs
$190
$173
CWF-2909 29" 9." 27" 8.25" 4.4 Gallons 7 lbs.
$229
$208
CWF-3410 34" 10" 32" 9.25" 5.6Gallons 10 lbs.
$262
$230
More Information
Detail Sheet
Guide Specifications
Field Manuals
Technical Information


*
When paying by Money Order or Check (subject to clearance), .
Please add Ground Shipping & handling to cost of products. Credit Card/Paypal Add 3% to total. Inquire for discount schedule on volume purchases. Since we're a high volume distributor, we're passing the savings to you. Please allow a minimum of 2 weeks lead time to process your order as these planters are made to order. Returns will not be honored unless the product is deemed defective by the manufacturer.
Minimum purchase for CWF self watering planter is $100. NJ residents Please add required sales tax

NEWAUTOFILL AUTOMATIC CONTAINER IRRIGATION

AutoFill automatic container irrigation delivers the convenience of automatic irrigation, but with the advantages of sub-irrigation. Each reservoir is controlled by its own patented float valve, which adjusts the water level to allow aeration in the soil, prevents irrigation overflow and evaporation. The reservoir is connected to a <20 psi low-pressure water line or gravity-fed reservoir, and needs no timers, valves, or electricity.



The AutoFill Valve -AutoFill ReservoirAwarded the Australian Design Awards "Design Mark for Engineering Design", the AutoFill valve maintains the correct water level in the reservoir through a unique, patented float system.

AutoFill ValveUnlike most float valves, which keep water at a consistent level, the AutoFill valve opens when water reaches a low point (shown dark blue), and stops when it reaches a maximum point (shown light blue). This allows for proper dry-down of the soil, and optimal plant health.

Round Autofill

Reservoir Filling AutoFill Watering Drydown Restart

The Autofill valve opens, filling the reservoir. As reservoir fills, water begins to wick up into soil



AutoFill valve closes when reservoir is full. Plants draw water from soil, which begins depleting reservoir

.

As level of water in reservoir drops, soil begins to dry and aeration is allowed through the larger fill ports


AutoFill valve reopens once level of reservoir drops to refill level.







Specifications
Model
Part Shape
Reservoir Size
To Fit Pot
To Fit Shape
List Price
Your Price*
AF-900
Round
9"dia x 2.5"h
9" to 20"
Round or square
$110
$80
AF-1800
Round
18”dia x 2.5”h
20” to 30”
Round or square
$176
$174
AF-2700
Hexagonal
27”dia x 2.5”h
30” to 40”
Round or square
$300
$250
AF-3900
Octagonal
39”dia x 2.5”h
40” to 50”
Round or square
$418
$352
AF-4500
Octagonal
45”dia x 2.5”h
50” to 60”
Round or square
$562
$447
AF-1809
Rectangle
18”l x 9”w x 2.5”h
18”-31”l x 10”-15”w
Rectangle
$258
$215
AF-3009
Rectangle
30”l x 9”w x 2.5”h
31”-43”l x 10”-15”w
Rectangle
$268
$222
AF-4209
Rectangle
42”l x 9”w x 2.5”h
43”-55”l x 10”-15”w
Rectangle
$276
$228
AF-5409
Rectangle
54”l x 9”w x 2.5”h
55”-67”l x 10”-15”w
Rectangle
$300
$249
AF-6609
Rectangle
66”l x 9”w x 2.5”h
67”-84”l x 10”-15”w
Rectangle
$326
$270
AF-1813
Rectangle
18”l x 13”w x 2.5”h
18”-31”l x 15”-22”w
Rectangle
$298
$246
AF-3013
Rectangle
30”l x 13”w x 2.5”h
31”-43”l x 15”-22”w
Rectangle
$308
$253
AF-4213
Rectangle
42”l x 13”w x 2.5”h
43”-55”l x 15”-22”w
Rectangle
$316
$262
AF-5413
Rectangle
54”l x 13”w x 2.5”h
55”-67”l x 15”-22”w
Rectangle
$344
$283
AF-6613
Rectangle
66”l x 13”w x 2.5”h
67”-84”l x 15”-22”w
Rectangle
$366
$303
AF-3020
Rectangle
30”l x 20”w x 2.5”h
31”-43”l x 22”-36”w
Rectangle
$336
$277
AF-4220
Rectangle
42”l x 20”w x 2.5”h
43”-55”l x 22”-36”w
Rectangle
$358
$295
AF-5420
Rectangle
54”l x 20”w x 2.5”h
55”-67”l x 22”-36”w
Rectangle
$392
$324
AF-6620
Rectangle
66”l x 20”w x 2.5”h
67”-84”l x 22”-36”w
Rectangle
$418
$345
AF-REG Pressure Regulator 3/4" NPT both ends, 10 to 20 psi static flow, list $56 , your price $50
AF-VAL Replacement Valve for AutoFill Systems-Valve Only , List $45, your price $40
AF-VPA Replacement Valve plate assembly, includes valve, plate and all parts, List $70, your price $65
AF-TB50 50' of Autofil 1/4" OD Vinyl Tubing Black , List $35, your price $29

Detail Sheet
Guide Specifications


*
When paying by Money Order or Check (subject to clearance), .
Please add Ground Shipping & handling to cost of products. Credit Card/Paypal Add 3% to total. Inquire for discount schedule on volume purchases. Since we're a high volume distributor, we're passing the savings to you. Please allow a minimum of 2 weeks lead time to process your order as these planters are made to order. Returns will not be honored unless the product is deemed defective by the manufacturer.


Minimum purchase for Autofil self watering planter is $100. NJ residents Please add required sales tax





NEWCWM Modular Container Irrigation System

Get maximum flexibility with CWM container irrigation modules. Use 1 to 5 units to make up systems for virtually any container. The vacuum/sensor system keeps plants at their optimal moisture levels, and the oversize modules provide enough water to allow extended watering.

CWM Modular™ is a versatile container irrigation system designed for use in any large planter, freestanding or otherwise. The hand-filled reservoir system can go 2-3 weeks between fillings. It utilizes Planter Technology’s exclusive vacuum-sensor system to precisely monitor the soil moisture in the container, giving plants exactly the amount of water they need (see below). The CWM provides optimal flexibility for use in virtually any shape planter, will not interfere with lighting or other electrical connections, and requires no plumbing. With the use of a overflow drainage adapter CWM can control run-off of irrigation water – no more overflowing saucers or stained pavers







The CWM system consists of several oversize reservoir modules connected together with flexible tubing. It is filled by hand every 2-3 weeks. The fill hole is closed with our exclusive tamper-resistant cap, creating an airtight seal. The upper connecting tubes allow air and vacuum to be transmitted to all modules, the lower connecting tube passes water between the units.

When the soil is dry, the porous moisture sensor allows air to pass through the tube into the reservoir, permitting water to flow into the soil through the holes in the bottom of the "cup" in the CWM. This water wicks up through the soil, watering the plant.

As the soil becomes moist, the sensor (planted _ to 1/3 way down in the container) absorbs water. It closes like a valve, preventing air from passing through the tube. A vacuum is created above the reservoir, preventing further watering until the soil dries again.
The overflow drainage adapter allows excess water that builds up (typically rainwater) to escape without disrupting the system. Underplantings, after a short acclimation period, typically may be watered on the same cycle as the primary planting.
Overflow drainage adapter prevents discharge of irrigation water





Components of the CWM™ Modular

Fill Module – An adjustable height fill tube allows use of a garden hose or watering wand. One fill module is required in each system.
Sensor Module – The "brains" of the CWM, one unit is needed in each system. Precisely controls water provided to the plant based upon the soil moisture level.
Secondary Module – Intermediate units hold irrigation water. Quantity depends upon size and requirements of planter. Up to 4 units for each system.
Extension Module – A flat module for very large containers. Connected to the front of a CWM.
Connections – Braided flexible PVC tubing and quick-snap nylon hose clamps provide a reliable seal between each module.
Overflow Drainage Adapter – Sealed over each drainage hole in the planter to keep irrigation water in, allow rainwater out.

Specifying CWM Container Irrigation

Model
Description
Type
Price
CWM-1109-MS
Small curve-back solo module 11"Wx9"Hx7.5"D, w/ 9"Rad., .8 gal. water capacity
Round-Back
$110
CWM-1109-2k
2 small curve-back modules 11"Wx9"Hx7.5"Dl- 1.6 gal. water capacity
Round-Back
$230
CWM-1109-3k
3 small curve-back modules 11"Wx9"Hx7.5"D - 2.4 gal. water capacity
Round-Back
$290
CWM-1109-4k
4 small curve-back modules 11"Wx9"Hx7.5"D - 3.2 gal. water capacity
Round-Back
$357
CWM-1114-MS
Small curve-back solo module 11"Wx14"Tx7.5"D w/ 9"Rad.,- 1.2 gal. water capacity
Round-Back
$120
CWM-1114-2k
2 small curve-back modules 11"Wx14"Hx7.5"D - 2.4 gal. water capacity
Round-Back
$243
CWM-1114-3k
3 small curve-back modules 11"Wx14"Hx7.5"D - 3.6 gal. water capacity
Round-Back
$309
CWM-1114-4k
4 small curve-back modules 11"Wx14"Hx7.5"D - 4.8 gal. water capacity
Round-Back
$345
CWM-1120-MS
Small curve-back solo module, 11"Wx20”Hx7.5"D w/ 9"Rad., , 1.8 gal water capacity
Round-Back
$137
CWM-1120-2k
2 small curve-back modules, 11"x20”Hx7.5"D, 3.6 gal water capacity
Round-Back
$243
CWM-1120-3k
3 small curve-back modules, 11"x20”Hx7.5"D, 5.4 gal water capacity
Round-Back
$309
CWM-1120-4k
4 small curve-back modules, 11"x20”Hx7.5"D, 7.2 gal water capacity
Round-Back
$345
CWM-1714-MS
Medium curve-back solo module 17"Wx14"Tx10.9"D w/ 15"Rad- 3 gal. water capacity
Round-Back
$140
CWM-1714-2k
2 medium curve-back modules 17"Wx14"Hx10.9"D, w/ 15"Rad,- 6 gal. water capacity
Round-Back
$296
CWM-1714-3k
3 medium curve-back modules 17"Wx14"Hx10.9"D, w/ 15"Rad - 9 gal. water capacity
Round-Back
$390
CWM-1714-4k
4 medium curve-back modules 17"Wx14"Hx10.9"D, w/ 15"Rad - 12 gal. water capacity
Round-Back
$489
CWM-1714-5k
5 medium curve-back modules 17"Wx14"Hx10.9"D, w/ 15"Rad - 15 gal. water capacity
Round-Back
$577
CWM-1720-MS
Medium curve-back solo module 17"Wx20"Tx11.6"D, w/ 15"Rad.,- 4.25 gal. water capacity
Round-Back
$175
CWM-1720-2k
2 medium curve-back modules 17"Wx20"Hx11.6"D, w/ 15"Rad- 8.5 gal. water capacity
Round-Back
$308
CWM-1720-3k
3 medium curve-back modules 17"Wx20"Hx11.6"D, w/ 15"Radl - 12.75 gal. water capacity
Round-Back
$401
CWM-1720-4k
4 medium curve-back modules 17"Wx20"Hx11.6"D, w/ 15"Radl - 17 gal. water capacity
Round-Back
$498
CWM-1720-5k
5 medium curve-back modules 17"Wx20"Hx11.6"D, w/ 15"Rad - 21.25 gal. water capacity
Round-Back
$580
CWM-2914-MS
Large curve-back solo module 29"Wx14"Tx18.5"D, w/26"Rad- 7.5 gal. water capacity
Round-Back
$206
CWM-2914-2k
2 large curve-back modules 29"Wx14"Hx18.5"D, w/26"Rad- 15 gal. water capacity
Round-Back
$352
CWM-2914-3k
3 large curve-back modules 29"Wx14"Hx18.5"D, w/26"Rad - 22.5 gal. water capacity
Round-Back
$468
CWM-2914-4k
4 large curve-back modules 29"Wx14"Hx18.5"D, w/26"Rad - 30 gal. water capacity
Round-Back
$575
CWM-2914-5k
5 large curve-back modules 29"Wx14"Hx18.5"D, w/26"Rad - 37.5 gal. water capacity
Round-Back
$686
CWM-2914-5kE
5 large curve-back modules and 1 extension module 29"Wx14"Hx18.5"D, w/26"Rad - 38.5 gal. water capacity
Round-Back
$791
CWM-2920-MS
Large curve-back solo module 29"Wx20"Tx18.5"W, w/26"Rad,- 9.75 gal. water capacity
Round-Back
$222
CWM-2920-2k
2 large curve-back modules 29"Wx20"Hx18.5"D, w/26"Rad- 19.5 gal. water capacity
Round-Back
$369
CWM-2920-3k
3 large curve-back modules 29"Wx20"Hx18.5"D, w/26"Rad - 29.25 gal. water capacity
Round-Back
$540
CWM-2920-4k
4 large curve-back modules 29"Wx20"Hx18.5"D, w/26"Rad - 39 gal. water capacity
Round-Back
$645
CWM-2920-5k
5 large curve-back modules 29"Wx20"Hx18.5"D, w/26"Rad - 48.75 gal. water capacity
Round-Back
$759
CWM-2920-5kE
5 large curve-back modules and 1 extension module 29"Wx20"Hx18.5"D, w/26"Rad - 50.75 gal. water capacity
Round-Back
$864
CWM-R1109-MS
Small square-back solo module 11"Wx9"Tx8.75"D, - 1.3 gal. water capacity
Square Back
$105
CWM-R1109-2k
2 small square-back modules 11"Wx9"Hx8.75"D, - 2.60 gal. water capacity
Square Back
$261
CWM-R1109-3k
3 small square-back modules 11"Wx9"Hx8.75"D, - 3.9 gal. water capacity
Square Back
$314
CWM-R1109-4k
4 small square-back modules 11"Wx9"Hx8.75"D, - 5.2 gal. water capacity
Square Back
$384
CWM-R1114-MS
Small square-back solo module 11"Wx14"Tx8.75"D - 2 gal. water capacity
Square Back
$112
CWM-R1114-2k
2 small square-back modules 11"Wx14"Hx8.75"D, - 4.0 gal. water capacity
Square Back
$265
CWM-R1114-3k
3 small square-back modules 11"Wx14"Hx8.75"D, - 6.0 gal. water capacity
Square Back
$327
CWM-R1114-4k
4 small square-back modules 11"Wx14"Hx8.75"D,- 8 gal. water capacity
Square Back
$398
CWM-R1120-MS
Small square-back solo module, 11"Wx20”Tx8.75"D,, 2.5 gal water capacity
Square Back
$130
CWM-R1120-2k
2 small square-back modules, 11"Wx20”Hx8.75"D, 4.6 gal water capacity
Square Back
$272
CWM-R1120-3k
3 small square-back modules, 11"Wx20”Hx8.75"D,, 6.9 gal water capacity
Square Back
$335
CWM-R1120-4k
4 small square-back modules, 11"Wx20”Hx8.75"D, 9.2 gal water capacity
Square Back
$411
CWM-R1614-MS
Medium 16” square-back solo module, 16"Wx14”Hx12.8"D, 3.25 gal water capacity
Square Back
$153
CWM-R1614-2k
2 medium 16” square-back modules, 16"Wx14”Hx12.8"D,, 6 gal water capacity
Square Back
$287
CWM-R1614-3k
3 medium 16” square-back modules, 16"Wx14”Hx12.8"D, 9 gal water capacity
Square Back
$384
CWM-R1614-4k
4 medium 16” square-back modules, 16"Wx14”Hx12.8"D14”h, 12 gal water capacity
Square Back
$461
CWM-R1614-5k
5 medium 16” square-back modules, 16"Wx14”Hx12.8"D 15 gal water capacity
Square Back
$566
CWM-R1620-MS
Medium 16” square-back solo module, 16"Wx20”Hx12.,8"D, 4.5 gal water capacity
Square Back
$169
CWM-R1620-2k
2 medium 16” square-back modules, 16"Wx20”Hx12.,8"D, 8.5 gal water capacity
Square Back
$292
CWM-R1620-3k
3 medium 16” square-back modules, 16"Wx20”Hx12.,8"D, 12.75 gal water capacity
Square Back
$390
CWM-R1620-4k
4 medium 16” square-back modules, 16"Wx20”Hx12.,8"D,, 17 gal water capacity
Square Back
$461
CWM-R1620-5k
5 medium 16” square-back modules, 16"Wx20”Hx12.,8"D, 21.25 gal water capacity
Square Back
$566
CWM-R2014-MS
Medium 20" square-back solo module 20"Wx14"Hx12.9"D - 4.5 gal. water capacity
Square Back
$182
CWM-R2014-2k
2 medium 20" square-back modules 20"Wx14"Hx12.9"D - 9.2 gal. water capacity
Square Back
$332
CWM-R2014-3k
3 medium 20" square-back modules 20"Wx14"Hx12.9"D - 13.8 gal. water capacity
Square Back
$452
CWM-R2014-4k
4 medium 20" square-back modules 20"Wx14"Hx12.9"D - 18.4 gal. water capacity
Square Back
$537
CWM-R2014-5k
5 medium 20" square-back modules 20"Wx14"Hx12.9"D - 23 gal. water capacity
Square Back
$635
CWM-R2020-MS
Medium 20" square-back solo module 20"Wx20"Hx12.9"D - 5.7 gal. water capacity
Square Back
$199
CWM-R2020-2k
2 medium 20" square-back modules 20"Wx20"Hx12.9"D- 11.4 gal. water capacity
Square Back
$347
CWM-R2020-3k
3 medium 20" square-back modules 20"Wx20"Hx12.9"D - 17.1 gal. water capacity
Square Back
$468
CWM-R2020-4k
4 medium 20" square-back modules 20"Wx20"Hx12.9"D - 22.8 gal. water capacity
Square Back
$580
CWM-R2020-5k
5 medium 20" square-back modules 20"Wx20"Hx12.9"D - 29.7 gal. water capacity
Square Back
$675
CWM-R2914-MS
Large square-back solo module 29"Wx14"Hx18.5"D - 9.5 gal. water capacity
Square Back
$199
CWM-R2914-2k
2 large square-back modules 29"Wx14"Hx18.5"D - 18 gal. water capacity
Square Back
$365
CWM-R2914-3k
3 large square-back modules 29"Wx14"Hx18.5"D - 27 gal. water capacity
Square Back
$512
CWM-R2914-4k
4 large square-back modules 29"Wx14"Hx18.5"D - 36 gal. water capacity
Square Back
$640
CWM-R2914-5k
5 large square-back modules 29"Wx14"Hx18.5"D - 45 gal. water capacity
Square Back
$772
CWM-R2914-5kE
5 large square-back modules and 1 extension module 29"Wx14"Hx18.5"D - 46 gal. water cap.
Square Back
$874
CWM-R2920-MS
Large square-back solo module 29"Wx20"Hx18.5"D - 10.4 gal. water capacity
Square Back
$212
CWM-R2920-2k
2 large square-back modules 29"Wx20"Hx18.5"D - 20.8 gal. water capacity
Square Back
$412
CWM-R2920-3k
3 large square-back modules 29"Wx20"Hx18.5"D- 31.2 gal. water capacity
Square Back
$551
CWM-R2920-4k
4 large square-back modules 29"Wx20"Hx18.5"D - 41.6 gal. water capacity
Square Back
$706
CWM-R2920-5k
5 large square-back modules 29"Wx20"Hx18.5"D- 52 gal. water capacity
Square Back
$844
CWM-R2920-5kE
5 large square-back modules and 1 extension module 29"Wx20"Hx18.5"D - 54 gal. water cap.
Square Back
$934

More Information
Detail Sheet
CAD & Models
Guide Specifications
Field Manuals
Technical Information


*
When paying by Money Order or Check (subject to clearance), .
Please add Ground Shipping & handling to cost of products. Credit Card/Paypal Add 3% to total. Inquire for discount schedule on volume purchases. Since we're a high volume distributor, we're passing the savings to you. Please allow a minimum of 2 weeks lead time to process your order as these planters are made to order. Returns will not be honored unless the product is deemed defective by the manufacturer.
Minimum purchase for CWM Container System is $100. NJ residents Please add required sales tax
Accessories:

BPVC-75 Reinforced tubing for connections
AC-75 Nylon quick-snap clamps for all connections
F-7590 Plastic elbow connector for square, CRT Configurations.

BG25P BioGuard fabric to keep roots from growing into reservoir. One per "cup"
P-75 Plug for end units – connection.


NEWDRAINAGE PRODUCTS




We get more questions about draining water out of planters than anything else. These products can be used to pump out planters where no drainage can be tolerated, provide overflow for excess water, and control drainage in many applications. While these are designed to integrate with most Tournesol Siteworks irrigation and containers, they can be used equally well with pots or planters from any manufacturer.

Drainage Control Products and Liner Adapters

Model # Description
Price
DR1-1 Drainage System 1, includes pump-out tube, T and sleeve (no pipe loop)
$57
DR1-2 Drainage System 1, includes pump-out tube, drainage pipe and sleeve, for 2’ pots
$74
DR1-3 Drainage System 1, includes pump-out tube, drainage pipe and sleeve, for 3’ pots
$88
DR1-4 Drainage System 1, includes pump-out tube, drainage pipe and sleeve, for 4’ pots
$106
DR2-1 Drainage System 2, includes pump-out tube, T and sleeve, side discharge adapter
$91
DR2-2 Drainage System 2, includes pump-out tube, drainage pipe and sleeve, side discharge
adapter, for 2’ pots
$111
DR2-3 Drainage System 2, includes pump-out tube, drainage pipe and sleeve, side discharge adapter, for 3’ pots
$130
DR2-4 Drainage System 2, includes pump-out tube, drainage pipe and sleeve, side discharge adapter, for 4’ pots
$148
TODA Side discharge overfl ow adapter, includes drainage adapter and valved stopcock
$47
TA-050 1/2" slip x thread double-gasketed drainage adapter
$36
TA-075 3/4" slip x thread double-gasketed drainage adapter
$36
TA-100 1" slip x thread double-gasketed drainage adapter
$40

More Information
Detail Sheet
CAD & Models
Field Manuals
