NAME
DESCRIPTION
SIZES
MATERIALS OF CONSTRUCTION
NOTES
VertiGreen Hybrid Pre-Grown 3D Trellis A VertiGreen 3D rigid trellis with integrated plant growing module. Allows the trellis to be used anywhere. 48" x 48" (with 1 module) and 96" x 48" (with 2 modules) Rigid recycled trellis panels with polypropylene plant growing modules Uses easy-to-mount VertiGreen brackets
Tournesol VGM Modular Living Wall System A complete extensive or intensive greenwall system designed to last the lifetime of a structure. Removable modules with soil profile up to 8". 20"w x 22"h modules, rails to hold 1-4 modules. Living wall modules with heavy-duty rail-based mounting system Soil and irrigation specs are also available as required.
TerraScreen Interior Greenwall System A full wall panel system designed to hold 6"plants in nursery pots. Easy to install, even easier to maintain. 4'x4' and 4'x6' wall panels. Full system extends 18" from wall Interior greenwall panels of galvanized, powder-coated wire. Ask about irrigation alternatives
VertiGreen 3D Trellis System A modular rigid 3D trellis system with a variety of grid panel sizes. Simple mounting systems make green facades easy. 3", 6" and 12" grid spacing on panels 4'x6, 4'x8' and 4'x10. Trellis panels made of recycled wire, zinc-, then powder-coated. Also available in custom sizes and heights.
Tournesol Modular Green Roof Products Trays for modular green roof installations. For either intensive or extensive applications. 24"x24", 24" x 48" in 4" and 8" depths Self-contained trays with drainage layer New G2 construction is flangeless to reduce visual impact of tray
SpiraPave Deck & Paver Supports Adjustable low-height support jacks with a full range of accessories and features for decks and pavers from 1/2" to 3" Support jacks of recycled polypropylene Available with beam support or paver spacing tabs
VersiJack Deck & Paver Pedestal System The most versatile, easy-to-use pedestal system available with a full range of accessories for decks or pavers from 3" to 40" Pedestals manufactured in 100% recycled polypropylene Holds more than 2X the weight of any other system
VersiPave Paver Support Commercial-grade supports adjust to different paver thicknesses Extender platforms allow heights from 1" to 2-1/2" Supports manufactured in 100% recycled polypropylene Provides superior drainage and accessibility compared to typical sandbed installations




NEWTournesol VGM Modular Greenwall System

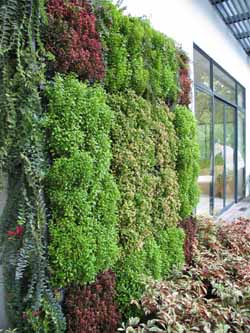

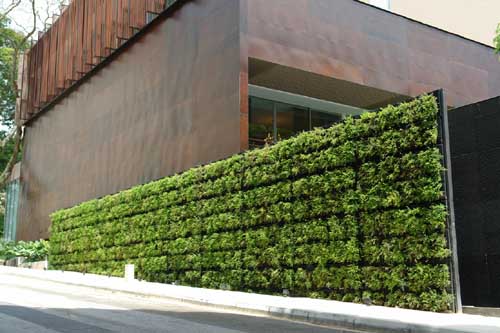

Tournesol VGM is a robust, commercial-quality greenwall system, consisting of recycled plastic planting modules and powder-coated hanging rails. Tournesol VGM greenwalls provide complete, instant coverage for any vertical surface, and allow a wide, controllable variety of plant designs for any horticultural condition. Designed to last the life of the building, VGM is backed by Tournesol's 30 years of experience creating complete landscape solutions for the urban environment and unequaled after-sales support

Each VGM module has a generous 4.5" or 8.5" soil profile, which translates directly to healthier, stronger root growth and long-lived plants. Modules are shipped to the project broken down (saving freight), then assembled, filled, and planted in a local nursery. Grow-in typically takes 1-3 months prior to hanging.

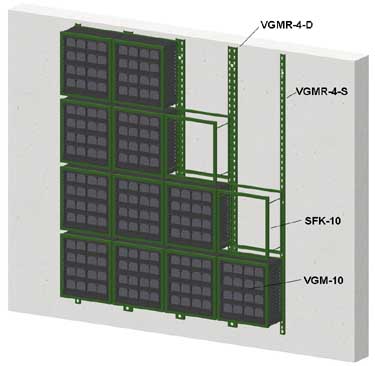

The rail mounting system requires minimal penetrations to any wall, and can be installed independent of the modules. They work on any type of structurally sound walls, including building facades, screen walls, and walkways. Modules are hung quickly and easily, and may be removed as necessary for design changes or maintenance..

The Tournesol VGM rails come in end-mount rails (-S), with a single set of mounting holes, or double mounting rails (-D), for intermediary locations. They are available for 1, 2, or 4 modules (-1, -2, -4). All rails are powder-coated black stainless steel to last the life of the building. To achieve more than 4 module greenwalls (or combinations), multiple rails can be installed in a row. Rails may be mounted independent of the boxes being hung, to facilitate building completion and timing.

Tournesol VGM modules, manufactured of 100% recycled polypropylene plastic, are delivered flat to minimize freight. They need to be assembled (see illustrations below), the soil retention bag set in place, filled, then the top snapped in place. A highly inorganic lightweight soil mix (>95% inorganics, 30-50 lbs per cu. ft) should be used in the module. The modules need to be planted and grown-in on their backs in a nursery-type setting. The soil retention bag should be slit, and plugs, liners, or other size plants started in the soil. Minimum grow in time is one month. The plants must be well-rooted prior to hanging the module.

Once the module is ready to be hung, it needs to be transported to the job site, and the framset attached. All parts of the frameset are black powder-coated stainless steel. Long through-bolts run from the front frame, and screw into nuts on the back frame. Studs on the back frame set lock into the rails, ensuring the modules stay in place.

Once the units are hung, Tournesol recommends irrigating them with drip irrigation. Contact your Tournesol Siteworks salesperson to discuss irrigation and fertilization strategies.Modules can be removed or attached independent of one another, should maintenance be necessary. New modules (the least expensive part of the system) can be introduced to existing framesets, allowing replacements to be held in reserve.

Model Description
VGM3-06 VGM3 Module, 4" planting depth. Black recycled polypropylene material.
19"W x 22"H x 6"D, includes soil retention bag
VGM3-10 VGM3 Module, 8" planting depth. Black recycled polypropylene material. 19"W x 22"H x 10"D, includes soil retention bag
VGMB-06L VGM3-06 Left side bracket - 2 required per module, 7-3/8" x 1-1/2" x 5/8" Powder coated stainless steel 304
VGMB-06R VGM3-06 Right side bracket - 2 required per module, 7-3/8" x 1-1/2" x 5/8" Powder coated stainless steel 304
VGMB-10R VGM3-10 Right side bracket - 2 required per module, 11-3/8" x 1-1/2" x 5/8" Powder coated stainless steel 304
VGMB-10L VGM3-10 Left side bracket - 2 required per module, 11-3/8" x 1-1/2" x 5/8" Powder coated stainless steel 304
VGMR-1 VGM3 Mounting Rail 1 Row of VGM Modules 1-1/2"W x 5/8"D x 23-1/2"L Stainless Steel 304
VGMR-2 VGM3 Mounting Rail 2 Rows of VGM Modules 1-1/2"W x 5/8"D x 47-1/4"L Stainless Steel 304
VGMR-3 VGM3 Mounting Rail 3 Rows of VGM Modules 1-1/2"W x 5/8"D x 70-7/8”L Stainless Steel 304
VGM3-AL Anti-lift arm for VGM3-06 modules. Recycled polypropylene, 1 req. per module
VGM3-MB4 Stabilized media block for VGM modules - 2 per VGM3-06, 4 per VGM3-10 20.5”L x 9”W x 4”H

More Information
Detail Sheet
CAD & Models
Guide Specifications
Field Manuals
Technical Information


NEWTournesol VGP Tray Living Wall System


VGP Tray

The VGP is a versatile, easy-to-install living wall system for residential and light commercial applications. Few living wall systems offer the versatility of the VGP living wall. At the heart of the system is the planting tray, made of 100% recycled polypropylene. When direct-planted with two 4" or one-1-gallon nursery pots, it provides a lush, rich-looking living wall at a price significantly lower than our commercially-oriented VGM modular living wall.

The trays may be hung on a VGP mounting panel, standard 2" x 3" welded mesh or wire, or along rods or stainless steel rope. Each tray incorporates an anti-lift arm to prevent unwanted removal, but requires no other bolts or clips. Trays are hung at either 6" or 9" intervals, depending on the plant size and the project budget.

The VGP tray is designed with overflow drain from a sub-irrigation reservoir, so the pots will cascade drain to a central point. Add a wick and the reservoir will provide optimal water use. The generously-sized pot will allow for long term growing, and easy replacement or change-out as desired.

Model
Description
Empty Weight
VGP-01 VGP Planting Tray, black recycled polypropylene 7-5/8”W x 8-1/8”H x 7-1/2”D overall dimension
1 lbs
VGP-1836 Mounting Panel, black recycled polypropylene. Fits 12 pots (close spacing) or 8 pots (expanded spacing), 16”W x 36”H x 7/8”D, holds up to 12 VGP trays
2 lbs

Detail Sheet
CAD & Models

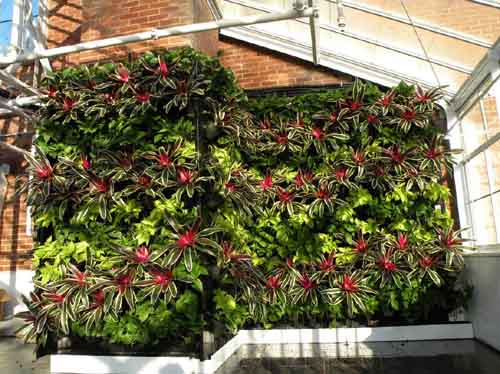

NEWTerraScreen Interior Greenwall System

The most efficient, effective, and maintenance friendly live wall system designed specifically for the interior.

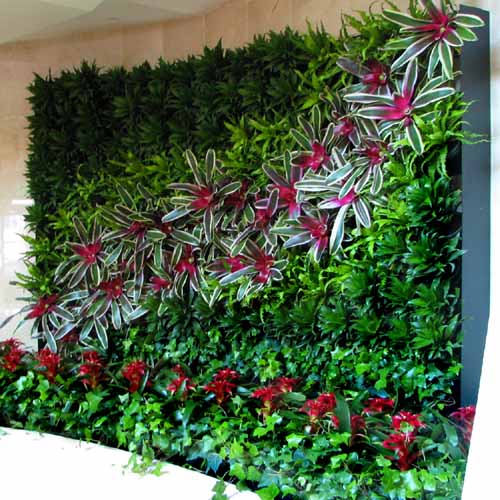

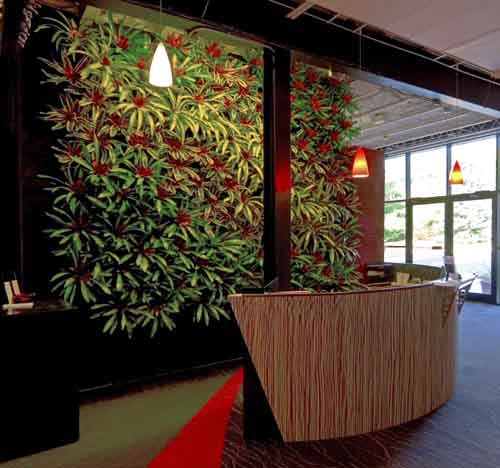

Often described as living art, TerraScreen™ allows the designer, landscape contractor, or owner to use “plants as paint” to establish a living, breathing focal point, set a mood, or celebrate a season

TerraScreen™ was originally developed by Planterra, a leading interior landscape design and maintenance company, specifically to meet the needs of the hospitality industry. It is the solution to the challenge of installing a living wall that is instantly lush and easy to refresh and maintain.

We recognize that styles change and spaces evolve. TerraScreen™ offer more flexibility than any other green wall system; designed so that the planting may be easily updated so the installation is apppriate to the style, season, and environment.

TerraScreen™ is manufactured and sold to the trade by Tournesol Siteworks, as part of its broader line of unique green building products, irrigation solutions and site furnishings.

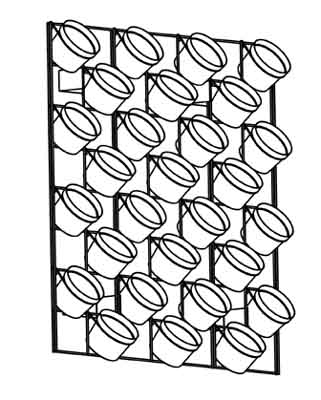

All modules are made of black powder-coated galvanized steel wire, with integral brackets to fasten the panel to the wall. Panels may be mounted adjacent to one another to create larger coverage areas.

Plants are placed in their 6" grow pot directly into the black no-hole cachepot. The hanger system keeps the plants in place. Replacement is simple - just remove the plant from its cachepot, put another in its place.

A pressurized tank-based irrigation system is also available for the TerraScreen system. Ask your Tournesol Siteworks salesperson for details.

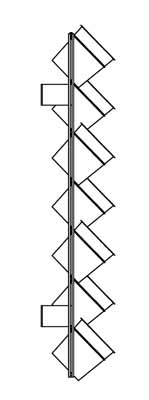

• Panel system stands 4-5/8” from wall, but requires minimum of 18” from wall for plants
• All TerraScreen™ systems should include a catch basin mounted below
• TerraScreen™ systems work best if wall behind panels is waterproofed and painted black.
• Approx. panel load - 170lbs. for 48”h, 250lbs. for 72”h TerraScreen™

Model
Description
TW-4949 TerraScreen panel 49"W x 49"H x 4-5/8"D, incl. brackets, 25 cachepots &
hangers. Holds 25 plants.
TW-7049 TerraScreen panel 70"H x 49"W x 4-5/8"D, incl. brackets, 35 cachepots & hangers. Holds 35 plants.
TW-7049-AD/MD TerraScreen panel 70"H x 49"W x 4-5/8"D, incl. brackets, 35 cachepots & hangers. Pre-plumbed irrigation system, specify automatic or manual irrigation connection. Holds 35 plants
TWCC Custom Cut of TerraScreen product to custom size (no irrigation)
TWIC Customization of TerraScreen Irrigation System (to custom size or quantity
of plants)
TW-PTSL Black cache pot with irrigation hole, receives 6" growpot
TW-HGR Black cache pot sleeve hanger
TWS-49 Black 20ga. sheet metal side cover for 49" Terrascreen. 49"H x 6"W, includes
hardware. For one side only
TWS-70 Black 20ga. sheet metal side cover for 70" Terrascreen, 70"H x 6"W Includes hardware. For one side only

More Information
Detail Sheet
CAD & Models
Guide Specifications
Field Manuals
Technical Information


NEW VertiGreen 3D Trellis System

Overview

Green facades are not all the same! Because you don’t want all your designs to look identical,Tournesol Siteworks offers the VertiGreen, a rigid, commercial-grade 3-dimensional trellis system.Available in a variety of panel grid sizes, the modular trellis will support and protect robust foliage growth, whether attached to a wall, or hung between posts as a “green” fence.


VertiGreen is easy to attach and protects the underlying structure while it supports climbing plants and vines. The durable panels are given an extra coating of zinc prior to powder coating to resist rust and corrosion over time.

The trellis panels are manufactured in 3”, 6” and 12” grid elements spaced 3” apart. They are available in any combination of no-edge, split-trim or continuous edge, depending upon the application.

Mounting is made easy with fixed-distance wall mount brackets (from close to 18”), post mount brackets, and specific brackets which integrate seamlessly with Tournesol’s rectangular and square planters or the VGM system.

Integrate the VertiGreen trellis with Tournesol’s industry-leading Wilshire Box hanging planters or VGM Modular Living Wall system, and you can reduce the overall cost while increasing the coverage of a green wall.

How it Works

Either hang the VertiGreen panel from a wall using the VTGB series of wall brackets, suspend them between posts using the VTGP post bracket, or attach them to a planter using a VTGS bracket. When using a 72" and 96" panel, you'll want to use 6 brackets, when using a 120" panel, use 8.

VTGB-3 Wall Bracket, holds VertiGreen panel 3" off wall (measured from back). Each bracket is delivered with a 1/2" plastic mounting pad for use with slightly irregular surfaces (i.e., stucco, uneven stone).

VTGP-3 Post bracket, designed to be used with either a square or round 3" post. Attach bracket to post using self-tapping metal screw.

Specification
Model
Description
VTG3-4848 VertiGreen 3D Trellis, 3" Grid Spacing, 48"H x 48"W x 3"D, includes 4 connecting plates for modular assembly, no trim
VTG3-7248 VertiGreen 3D Trellis, 3" Grid Spacing, 72"H x 48"W x 3"D, includes 4 connecting plates for modular assembly, no trim
VTG6-4848 VertiGreen 3D Trellis, 6" Grid Spacing, 48"H x 48"W x 3"D, includes 4 connecting plates for modular assembly, no trim
VTG6-7248 VertiGreen 3D Trellis, 6" Grid Spacing, 72"H x 48"W x 3"D, includes 4 connecting plates for modular assembly, no trim
VTG-CE Continuous Edge--20ga. Steel edge, spans between grid panels, per linear foor
VTG-ST Split Trim--20ga. steel edge, 2x 1/2" angle welded to each panel, per linear foot
VTGCC Custom Cut of VertiGreen 3D Trellis (per unit)
VTGP-SP3 VertiGreen Square Galvanized Steel Post, 3" x 3". Includes post cap. Black
powder coat, priced per linear foot
VTGP-RP3 VertiGreen Round Galvanized Steel Post, 3" dia. Includes post cap. Black powder coat, priced per linear foot
VTGB-0 VertiGreen Wall Bracket, Close,black-powder-coated steel
VTGB-3 VertiGreen Wall Bracket, 3", use with VH06
VTGB-6 VertiGreen Wall Bracket, 6", black powder-coated steel
VTGB-9 VertiGreen Wall Bracket, 9", use with VH10
VTGB-12 VertiGreen Wall Bracket, 12", black powder-coated steel
VTB-MP HDPE Mounting Pad for VTGB bracket. 2" square x 3/8" thick
VTGP-3 VertiGreen Post Bracket, for 3" Round and Square Posts

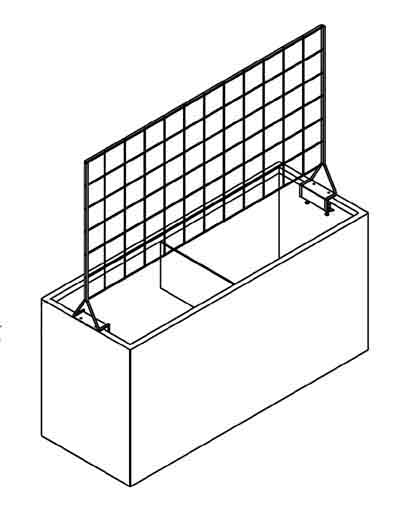

VTGS VertiGreen Planter Bracket to mount to fl at-wall planters, 2 required per panel,
requires continuous edge on sides to be mounted, black powder-coated steel

More Information
Detail Sheet
CAD & Models
Field Manuals
Technical Information


NEWVertiGreen Hybrid Pre-Grown 3D Trellis

The VertiGreen Hybrid will change the way you look at commercial trellises. By integrating a vertical plant growing module into a VertiGreen rigid 3-D trellis, the trellis can be pre-grown and placed anywhere without having to wait years to fill in. You can get the coverage of a living wall at the cost of a trellis!

Most designers calculate that it takes a minimum of 3-5 years for plants to cover a 10' trellis, and in many cases the wall never achieves coverage. The Hybrid system only requires vines & climbers to cover 1' in any direction, which can easily happen within the first few months. The image below was taken 2 weeks after installing 1-gal vines.

The VertiGreen Hybrid has a recycled plastic VGM plant growing module, set into our double-panel trellis system. The plants are grown in the module on its back (either on its own or installed in the trellis), and hung on the wall or screen once the plants are rooted in. Because the plants are grown in the trellis, it can easily be used in areas distant from the ground or another planter.

The VGM plant growing module (above) has no internal baffles or separations, allowing the roots to fully develop and grow. With options for 4", 6" and 8" of soil volume, there isn't a better living wall module on the market. Made of recycled polypropylene, the robust design snaps together easily in the field. Because the soil is contained within an inorganic non-woven fabric bag in the box, there is complete aeration of the soil from all sides.

The double-panel trellis nurtures climbing plants and vines while it protects the underlying structure. The panels are spaced 3" apart, and use a 6" grid, although 3" or 12" are available upon request. The VertiGreen Hybrid is made to commercial-grade specifications. The panels are plated with zinc prior to powder coating to resist rust and corrosion, ensuring the trellis looks good for the life of the building

The VertiGreen Hybrid mounts to the wall with the same simple bracket as is used with the original VertiGreen rigid trellis. The VTGB bracket (3" shown below) is delivered with a 1/2" plastic mounting pad for use with slightly irregular surfaces (i.e., stucco or uneven stone). Either the plant growing module or the entire panel can be quickly removed for maintenance.

The VertiGreen panels are available in any combination of no-edge, split trim or continuous edge, depending upon the application (see below).



Optional VertiGreen Drip Irrigation

The units are available with pre-assembled drip irrigation tubing. Each plant growing module has its own a 2-port 2GPH drip head. These are connected with 1/2" poly tubing, either run vertically (shown below), or horizontally across the panel. The units can quickly and easily be assembled in the field with hose barbs connecting adjoining units. While Tournesol Siteworks can assist with irrigation design, we advise having an irrigation design professional review the site, exposure, and local codes to determine the system configuration. A timer, pressure regulator, filter, and fertigation system is typically required for each installation.



How it Works

The VertiGreen Hybrid panel consists of two elements - the VertiGreen Hybrid trellis with mounting angles, and the VGM plant growing module. The VGM module will typically be planted on its back (either by itself or installed in the trellis) in the nursery, and the vines allowed to grow in for 1-3 months, longer for full trellis coverage.



TheVGM module is held securely in the trellis panel with 4 mounting angles (shown above), each of which uses 2 ea.1/4" x 3" stainless steel bolts screwed into the mount. The module can be removed in the field for maintenance or change-out, if required.

Once the VGM module is grown in, the trellis is hung on the wall using the simple VTG mounting brackets, shown below. The brackets are held into the wall with a 3/8" wall anchor system, not included. The dead load on each anchor should not exceed 50lbs., although the brackets are designed to withstand a live load (including wind load) of 250 lbs. The 48"x48" panel requires 4 brackets, the 96"x 48" panel requires 6 brackets. The bracket spacing and locations may vary.

VertiGreen Hybrid Specification

Model
Description
Size
VH06-1-4848 VertiGreen Hybrid 3D Trellis panel, 6" grid spacing, includes 1 VGM3-06 (4" soil profile) plant growing module, 48"H x 48"W x 3"D, no trim 48"w x 48"h x 6.25"d, 6" grid with 3" panel spacing
VH10-1-4848 VertiGreen Hybrid 3D Trellis panel, 6" grid spacing, includes 1 VGM3-10 (8” soil profile) plant growing module, 48"H x 48"W x 3"D, no trim 48"h x 48"w x 10.25"d, 6" grid with 3" panel spacing
VTGB-3 VertiGreen Wall Bracket, includes mounting pad Back of panel 3" from wall, for 6" panels
VTGB-9 VertiGreen Wall Bracket, includes mounting pad Back of panel 9" from wall, for 10" panels
VHIR-4848 Drip Irrigation System for 48" panel Includes 2GPH dripper and tubing, pre-installed

More Information
Detail Sheet
Guide Specifications
Field Manuals
Technical Information

NEWTournesol Modular Green Roof Products

The developments in putting green roofs on buildings is helping to give legs to the whole green building movement. While the concept is at heart an environmental one, there is far more practical to the technology than casual observers realize.

Long a player on roof gardens and green buildings, Tournesol Siteworks is now creating component solutions for the modular green roof marketplace. As the country realizes the benefits that a green roof provides , more developers are committing to covering at least a portion of their roof with plants. With the market still in its infancy, there are many different answers to the “right way” to set up a green roof. The most common solutions in use now are built-in-place and modular. Tournesol is working from our years of experience manufacturing liners for plants and planters, and creating components for the modular green roof segment. The market is currently roughly split between the two concepts. A modular green roof is made up of a series of trays, which hold engineered soil and plants. This allows the use of a green roof directly on existing roofing membrane, without retrofit and the associated risks and costs. It still provides the important elements associated with green roofs, including stormwater retention, insulation, and membrane protection. Tournesol Siteworks green roof trays are made of recycled HDPE material, and come in a variety of sizes for both extensive (4”) or intensive (8”) soil depths. Custom depths and sizes are available as required.

A quick summary of advantages of modular green roof systems vs. built-in-place:



Characteristics of the Tournesol modular trays:

Why install a green roof?

Benefits to the Natural Environment:



Benefits to the Built Enviroment:

Types of Green Roof Systems

Built-in-place vs. Modular

Most flat roofed buildings in this country are covered with either single-ply membrane or fluid applied rubberized asphalt waterproofing.  Green roofs are typically done on single-ply membrane roofs, the more expensive and reliable roofing solution. Built-in-place greenroofs are what they sound like - made up of single-ply roofing membrane, which is then layered with a plastic drainage material, another non-woven layer and water retention material, then 2+ inches of an engineered soil medium poured on top.  While the built-in-place green roof has a high level of flexibility and aesthetic value, it also is expensive to install and dependent upon the long-term success of the roof membrane.  Modular systems are essentially a series of trays, each of which holds a thin non-woven drainage fabric, engineered soil, and plants.  These systems offer significant installation and maintenance advantages. They tend to be considered more functional and less aesthetic (although once the plants grow in, it can be difficult to tell modular from build-in-place apart).

Extensive vs. Intensive

Greenroof projects that require no active, ongoing maintenance are called Extensive.  These are typically 4” deep (although they can be planted in as little as 2” of engineered soil), with simple or no irrigation, drought-tolerant plants (often sedum) which require little or no care.  This is the least expensive to install here.  The “maintenance-free” aspect of the roof is attractive, although they do need seasonal maintenance..  The plants on these types of installations will not withstand being walked on.  Our 4” modular trays are made for extensive applications.

Everything else is referred to as Intensive. Intensive can be from 6” up to several feet of soil, is often irrigated, and has a richer variety of plants.  They are also much more expensive than extensive roofs, and are typically custom designed by a specialist. Most of the really high profile projects are done as intensive, although the majority of greenroofs put in are extensive. Our 8” modular trays and modular trays with AutoFill are made for intensive applications.

Specifications
Model
Description
List Price
Your Price*
GRT3-242404 Extensive Green Roof Tray, 24”l x 24”w x 4”d,
$30
$25
GRT3-242408 Intensive Green Roof Tray, 24”l x 24”w x 8”d
$59
$49
GRT2-482404 Extensive Green Roof Tray, 48”l x 24”w x 4”d
$58
$48
GRT2-482408 Intensive Green Roof Tray, 48”l x 24”w x 8”d
$104
$94

More Information
Detail Sheet
CAD & Models
Guide Specifications

* When paying by Money Order or Check (subject to 5 to 10 business days clearance) or wire transfer (Add $25). Please add Ground Shipping & handling to cost of products. Credit Card Add 3% to total. Inquire for discount schedule on volume purchases. Since we're a high volume distributor, we're passing the savings to you. Please allow a minimum of 2 weeks lead time to process your order as these planters are made to order. Returns will not be honored unless the product is deemed defective by the manufacturer.

Minimum purchase is $100. NJ residents Please add required sales tax.


NEW SpiraPave Deck & Paver Support

Overview

SpiraPave adjustable deck and paver jacks are an economical replacement for brick, metal or wood substructures when installing raised pavers or decking. Raised podium floors allow for rapid drainage, easy accessibility to waterproofing membrane and concealed services below. Using purpose-built jacks will simplify the design and reduce the installation cost compared to any other material.


SpiraPave is a new generation design that allows for simple adjustment of paver of beam height in 1/16" increments. Designed for a minimum height of just 1/2", it can be used in locations where conventional height-adjustable pedestals can't. Other low-height stacking systems can't be adjusted, and require more labor during installation.

The system features the same optional slope correction elements either at the top of the jack or under the base that we use with the taller pedestal products. These easily adjust for slopes up to 5% in 1% increments. The broad, stable base won't damage waterproofing, and works equally well with pavers (using 3 standard paver spacing sizes) or with decking beams. They are manufactured in recycled polypropylene, so won't rot, retain water, or promote bacteria growth.

How it Works

Each SpiraPave jack is a two-piece interlocking element. By rotating the top in a clockwise direction, the jack ratchets in 1/16" increments. By combining 4 different top and bottom elements the jacks can adjust between 1/2" and 3". The units are delivered preassembled, and can be fit with either paver spacing tabs (shown above) or beam supports (shown below).

Specification

SpiraPave adjustable jacks are made in 100% recycled polypropylene, and will be unaffected by mold or algae, and have good resistance to alkali (concrete) and bitumen. All are black in color, and 6" in diameter. The jacks will support 25kN (5607 lbf), the equivalent of 4400 lbs.
Model Description Size
ESP-1 SpiraPave adjustable deck & paver support, Size 1 for 1/2" to 3/4" heights
ESP-2 SpiraPave adjustable deck & paver support, Size 2 for 5/8" to 7/8" heights
ESP-3 SpiraPave adjustable deck & paver support, Size 3 for 7/8" to 1-1/8" heights
ESP-4 SpiraPave adjustable deck & paver support, Size 4 for 1-1/8" to 1-3/4" heights
ESP-5 SpiraPave adjustable deck & paver support, Size 5 for 1-3/4" to 2-3/8" heights
ESP-6 SpiraPave adjustable deck & paver support, Size 6 for 2-3/8" to 3" heights
EA-SCT Platform Slope Corrector, Black Recyled Polypropylene 'adjusts to 5° in 1° increments
EA-PS4 Paver Spacer Tab for 1/8" paver spacing
EA-PS6 Paver Spacer Tab for 1/4" paver spacing
EA-PS10 Paver Spacer Tab for 3/8" paver spacing
EA-BH Beam Support for 2"-3" beams
ESP-EXT175 Base Slope Corrector adjusts to 5° in 1° increments

Detail Sheet
CAD & Models
Field Manual


NEW VersiJack Deck & Paver Pedestal System

Overview

VersiJack adjustable deck & paver pedestals are an economical replacement for brick, metal or wood substructures when installing raised pavers or decking. Raised podium floors allow for rapid drainage, easy accessibility to waterproofing membrane and concealed services below. Using purpose-built pedestals will simplify the design and reduce the installation cost compared to any other material.


VersiJack is the most multi-functional of all pedestal solutions. It features optional adjustable slope correction (either at the top or the base of the pedestal), as well as secure, fast, easy-to-set locking rings. The broad, stable base won't damage waterproofing, and can support more weight than any other pedestal system (3500 lbs.). Some of our largest projects are done with decking (see the before/after image of a commercial retail center above), but work equally well with concrete, stone, wood or granite pavers.



The pedestals can comfortably accommodate heights from 3" up to 40", and work both with pavers (using 3 standard paver spacing sizes) or with decking beams (see the image of a project using both above). They are manufactured in 100% recycled polypropylene, so can be used either wet or dry. They won't rot, retain water, or promote bacteria growth. They are commonly used to create false bottoms in shallow pools - see images below.

How it Works

The VersiJack pedestal is made of a pedestal base, a pedestal top, and multiple extender barrels, depending upon the desired height of the pedestal. The height of the pedestal is quickly adjusted by turning the upper unit into the lower unit. Once the correct height is reached, a locking ring is quickly installed which will prevent the unit from moving over time. The VersiJack can be used with up to 3 extender barrels, to reach a maximum height of 40".

Jacks can be finished off with a slope corrector for either the top or bottom of the pedestal. Both correctors can adjust in 1° increments to adapt to a 5° slope (see illustration of slope correctors below). Use of one or another usually depends upon the preference of the installer.

Each VersiJack can receive a beam support cap (see illustration below) that will accommodate widths between 2"-3". The beam support works in concert with either the top or bottom slope corrector.

To use the VersiJack with pavers, stone, or granite, use the paver spacer tabs. These plug into either the pedestal top or the top slope corrector, and are available in 1/8", 1/4" or 3/8" spacing (see image of wood pavers and spacer tabs below).

Wood tiles used with paver spacer tabs

Specification

VersiJack pedestals are manufactured in 100% recycled polypropylene, and can be used either wet or dry. They are rot resistant, won't absorb moisture, unaffected by algae or mold. The black units have a 8" base diamenter, and 6" top diameter. The ultimate compressive strength of a unit without the extender barrel is 20kN (4496 lbf), which represents approx. 3500 lbs.
Model Description Size
EVJ-00 VersiJack adjustable deck & paver support, Size 00 for 3" to 4-5/8" heights
EVJ-0 VersiJack adjustable deck & paver support, Size 0 for 4-5/8" to 8" heights
EVJ-1 VersiJack adjustable deck & paver support, Size 1 for 8" to 11" heights
EVJ-2 VersiJack adjustable deck & paver support, Size 2 for 11" to 17-1/2" heights
EVJ-3 VersiJack adjustable deck & paver support, Size 3 for 14" to 20-3/4" heights
EVJ-4 VersiJack adjustable deck & paver support, Size 4 for 17-1/4" to 27-1/4" heights
EVJ-5 VersiJack adjustable deck & paver support, Size 5 for 20-3/8" to 30-3/8" heights
EVJ-6 VersiJack adjustable deck & paver support, Size 6 for 23-1/2" to 36-3/8" heights
EVJ-7 VersiJack adjustable deck & paver support, Size 7 for 26-5/8" to 40" heights
EA-SCT Platform Slope Corrector, Black Recyled Polypropylene 'adjusts to 5° in 1° increments
EA-PS4 Paver Spacer Tab for 1/8" paver spacing
EA-PS6 Paver Spacer Tab for 1/4" paver spacing
EA-PS10 Paver Spacer Tab for 3/8" paver spacing
EA-BH Beam Support for 2"-3" beams
EVJ-SCB Base Slope Corrector adjusts to 5° in 1° increments

More Information
Detail Sheet
CAD & Models
Field Manual


NEWVersiPave Paver Support

Overview

VersiPave paver supports allow the easy placement of pavers on roofs, plaza decks, podium platforms, balconies, or anywhere that well-drained, level paver surfaces are required. They eliminate the need for sand, aggregate or mortar bedding courses.

By raising the paver surface, VersiPave ensures rapid drainage, simplifies maintenance on drains and waterproofing, and improves thermal and acoustic insulation by creating an airspace between the pavers and the surface slab.

VersiPave supports are circular, divided into four corner pads by paver spacer tabs. Each pad can independently be adjusted from 1" to 1-5/16" high in 1/16" increments. This is especially useful when using pavers or stone of varying thickness. The pads are quick and easy to field adjust, ensuring a secure, even paver surface. Optional extenders can raise the platform up to 1-3/16".

The supports are manufactured in 100% recycled polypropylene, so will not rot, retain water or promote bacteria growth. Designed for commercial installations, each support will carry more than 4000 lbs. They can be divided into halves and quarters for use along walls or in corners.

How it Works

The VersiPave is extremely easy to use. The pads won't fall off during handling or installation. Tilt them towards the outside of the support and they will slide to their lowest position. Push the pad towards the outside of the support and it engages the adjusting teeth, ratcheting up 1/16" at a time. Each pad can be quickly adjusted during installation, allowing for pavers or stone of varying thickness.

One support is required at each corner, for 4 pavers. Split the VersiPave in half for use with two pavers along walls, split the half again for use with 1 paver at a corner.

Two different extender spacers (3/8" or 1-3/16") are available for the VersiPave, as shown in the typical detail above. They are simply set underneath the support, and have nesting ears that lock into each VersiPave.

Specification

VersiPave supports and extenders are manufactured in 100% recycled polypropylene. They are unaffected by moisture, mold or algae, and have good resistance to alkali (concrete) and bitumen. Each unit is 6-3/8" in diameter, in a black color. The ultimate compressive strength is 25kN (5607 lbf), which equates to support of 4400lbs.
Model Description Size
EVP-150 VersiPave adjustable paver support jack 6-3/8" dia x 1-9/16"h, adjustable support from 1" to 1-5/16"
EVP-EXT37 VersiPave Extender Platform adds 3/8" to height of EVP-150
EVP-EXT118 VersiPave Extender Platform adds 1-3/16" to height of EVP-150

More Information
Detail Sheet
CAD & Models
